Soybean refined oil production line

Physical refining equipment is a process of removing impurities and undesirable components from oils and fats by physical methods. Unlike chemical refining processes, physical refining does not use chemical reagents, but uses physical means such as high temperature, vacuum, steam, etc. to remove free fatty acids, pigments, odor substances, etc. from oils and fats.

The main steps of the physical refining process include:

Pretreatment: First, the crude oil is degummed and decolorized to remove impurities such as phospholipids and pigments. This step requires strict degumming and decolorization indicators, such as residual phosphorus content, metal ion content, etc.
Deacidification: Under high temperature and vacuum conditions, the principle of direct steam distillation is used to remove free fatty acids and low-molecular odor substances in the oil with lower relative volatility than triglycerides along with steam. In this process, it is necessary to control the deacidification oil temperature, vacuum degree, deacidification time, and the pressure and dosage of direct steam to achieve better deacidification effect.
The advantage of the physical refining process is that it does not use chemical reagents, avoids the impact of chemical residues on the environment and human body, simplifies the process steps, and reduces the difficulty of operation. In addition, the physical refining process has no neutral oil saponification and emulsification loss, high refining rate, and good stability of finished oil.
Henan Huatai physical refining equipment is an environmentally friendly and fast oil refining method suitable for specific types of crude oil refining. In practical applications, it is necessary to select a suitable refining process according to the characteristics of the raw oil and the product quality requirements. Welcome leaders to call for consultation and communication.
Vegetable oil refining equipment, the company independently develops new processes and production lines. It can be applied to 98% of oils on the market such as soybean oil, rapeseed oil, walnut oil, peanut oil, etc. The equipment can realize degumming (hydration degumming, acid degumming); deacidification (alkali refining deacidification, distillation deacidification); decolorization (adsorption decolorization, heating decolorization, oxidation decolorization, chemical reagent decolorization); deodorization (vacuum steam deodorization); dewaxing; degreasing and other processes, which can be customized on demand, with good finished oil quality, high oil yield and high nutritional value.

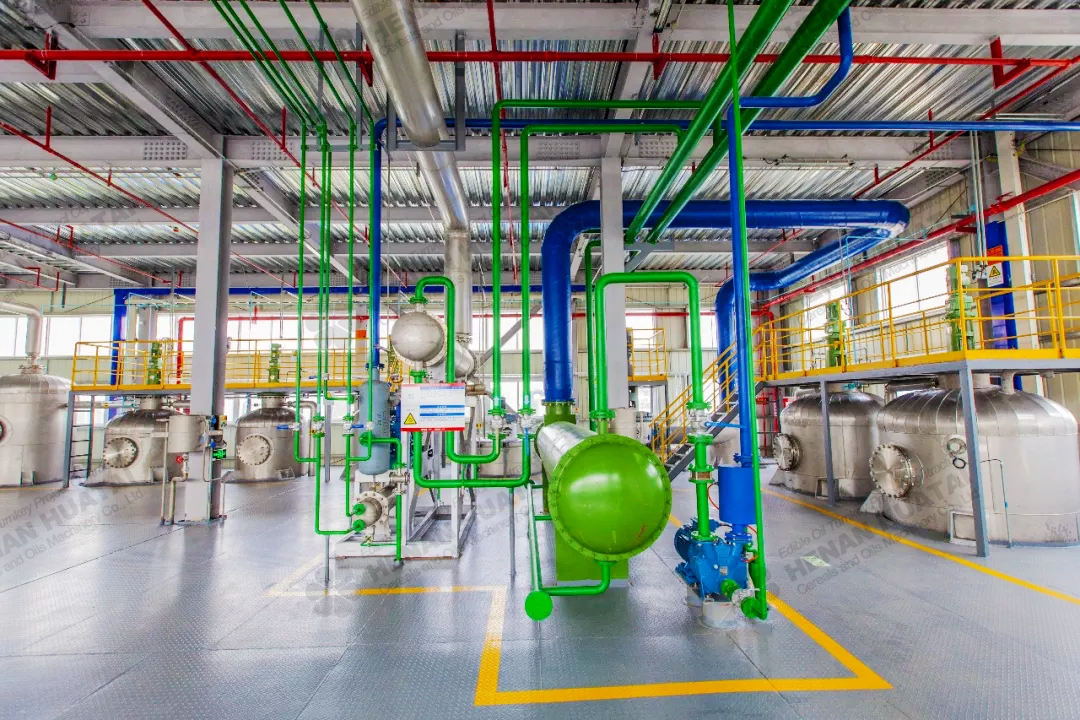

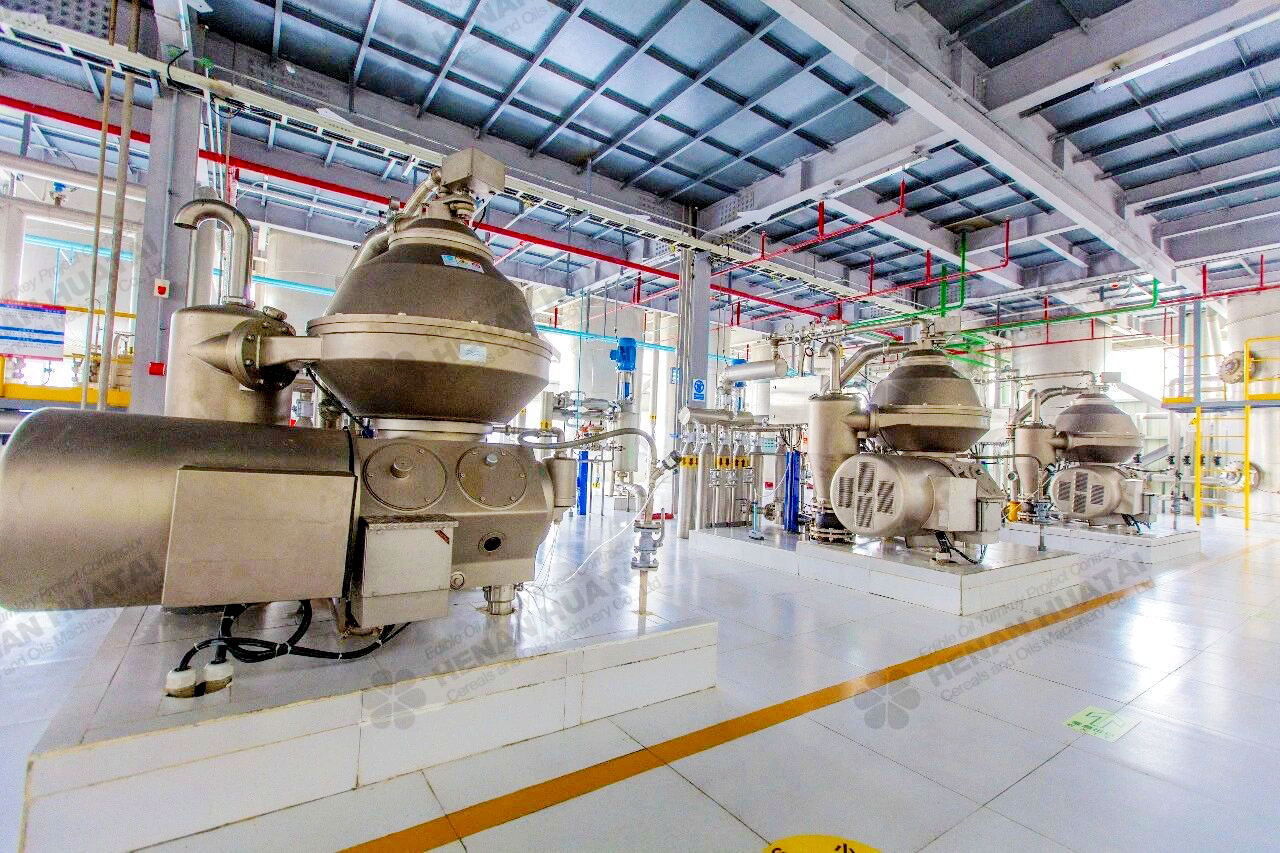

Introduction to soybean refined oil production line

1 ton-10 tons of edible oil refining. The main processing equipment for processing edible oils of various crude oils, such as sunflower seeds, soybeans, peanuts, coconut oil, cottonseed oil, etc. are as follows:

Equipment name

1. Degumming tank
2. Deacidification tank
3. Bleaching tank
4. Frame filter
5. Deodorization tank
6. Leaf filter

Quality standard of refined oil

1. First-class salad oil.
2. Grade of high-quality cooking oil.
3. Mixing and volatilization ≤0.25%.
4. Impurities ≤0.2%.
5. AV (mgKOH/g) ≤7.
6. FFA ≤3.5%.

Advantages of edible oil refining equipment

1. High-quality steel
2. Low energy consumption
3. Easy to operate
4. Small oil refinery saves space
5. High oil refining rate
6. High-quality finished oil.
