Huatai Lignite Wax Extraction Line – Patented Continuous Process

Huatai's lignite wax extraction line employs a patented continuous production process designed for high efficiency and energy savings. The system integrates extraction, desolventizing, evaporation, and solvent recovery into one seamless operation .

Process Overview:

The lignite is first crushed and screened to a particle size of 0.6–20mm, then fed into the extractor where it contacts organic solvent . After extraction, the wax-rich solution undergoes flash evaporation to recover the bulk of the solvent, followed by further evaporation to obtain crude lignite wax .
A key innovation is the heat exchange system: the liquid extract exchanges heat with the gaseous solvent from the desolventizer and evaporator before entering the evaporation unit. This raises the liquid temperature while cooling the gas before condensation—significantly reducing both heating and cooling energy consumption .

Core Equipment:

• Continuous extractor
• Desolventizer
• Condenser
• Heat exchanger with buffer tank and coil
• Evaporation unit

Key Advantages:

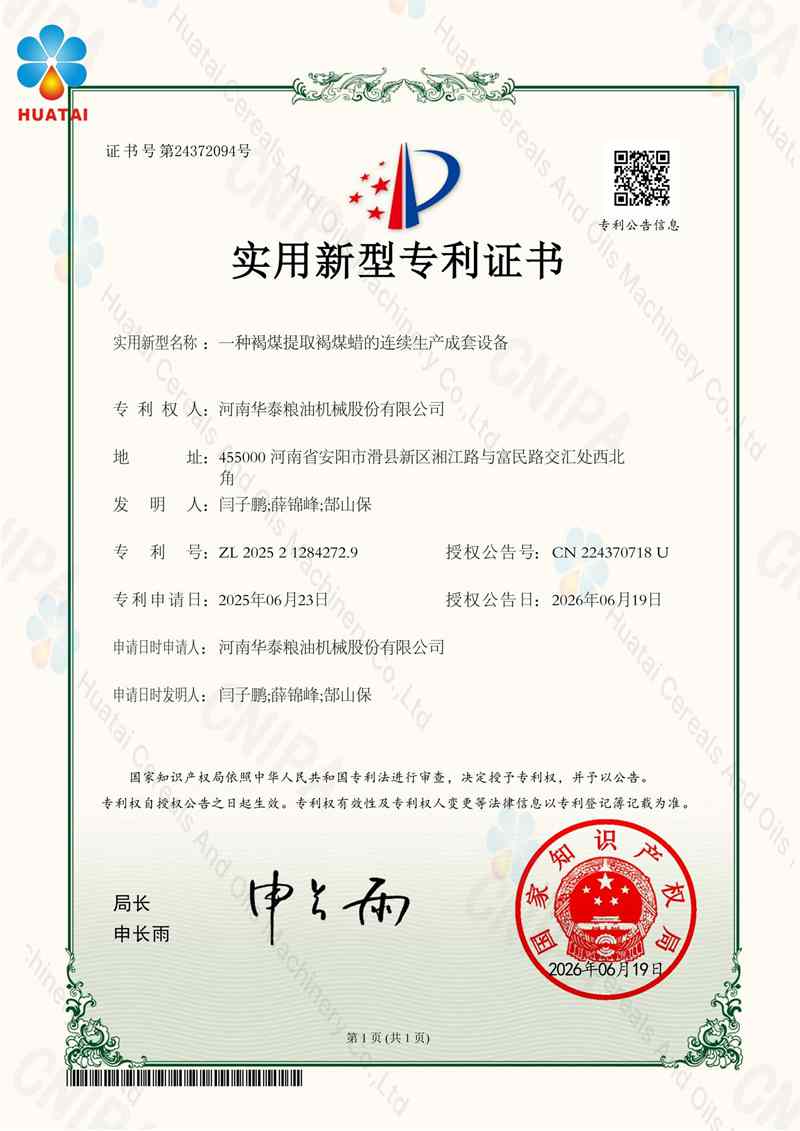

• Patented continuous production technology (ZL 202521284272.9)
• High degree of automation throughout
• Low solvent consumption
• High extraction rate and good wax quality
• Large-scale production capacity (100–5000 T/D)

With 38+ years of expertise and service in 70+ countries, Huatai delivers complete turnkey solutions from design to installation and training.
